FLOW METERS

The magnetic-inductive volumetric flow sensors of the SM series monitor liquids. They detect the three process categories volumetric flow quantity, consumed quantity and medium temperature. They are frequently used in cooling circuits, e.g. in steelworks, the automotive industry and in glassmaking. In water management and industrial installations, the sensors are used for water consumption measurement. Peak consumption, present consumption or accumulated consumption can be accessed and adjusted via programmed switch and alarm level settings - all at the touch of a button. The units feature two switching outputs which can be programmed as normally open or normally closed. For output of the measured value, one switching output can also be configured as a scalable analogue output. For consumed quantity monitoring, the other output transmits counting pulses to the controller. In addition to volumetric flow monitoring, the SM also monitors the temperature of the medium. It is displayed on the unit and provided for signal processing. The sensor is thus particularly suited for monitoring cooling circuits. The robust stainless steel housing and high protection rating provide high security even in harsh environments. Depending on the volumetric flow quantity to be detected, devices with different process connections are offered.

Precision measuring equipment

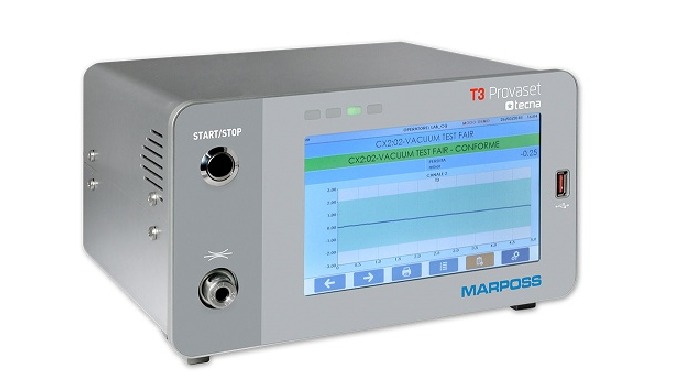

Marposs Provaset T3 Leak & Flow Control Tees is a state-of-the-art leak test built to survive in harsh environments. It has different versions to suit a wide range of applications: pressure drop, differential measurement, flow control. - Wide full-scale intervals: up to 30 bar – 300 l/min – vacuum. - High measurement resolution: up to 0.1 Pa - 0.01 cm3/min. - 7" color touch screen with real-time test charts. - Communication & Traceability: Ethernet - USB - Serial lines - Digital I/O. - Possibility of Data Collection, Equipment Management, Statistical Process Control (SPC) on HMI or PC with specific software. Control of external automations and devices: - Barcode and QR code reader. - Remote printer. - Control of Traffic Lights, External Valves, Filters, etc.
