SI-6DMU/A
Pillar Drilling Cum Milling Machine (Model No: SI-6DMU/A)
Brief Description:-
SIDDHAPURA INDUSTRIES a leading manufacturer of the Drilling Machines in drilling machine market since more than 30 years. We are situated at Bhavnagar in the state of Gujarat, INDIA. Our unit is one of the leading supplier and manufacturer of drilling machines in India and overseas. We strongly believe in quality and perfection throughout whole process of manufacturing of our product. Our prime vision is “Customers Satisfaction” in view of manufacturing, supply and after sales services to our valuable client.
Salient Features:-
- Proportioned column for rigidity of machine.
- Rough & smooth feed available by manual and power feed.
- Provision of window for change of gear on top cover.
- Quill spacer made of mild steel.
- Main spindle made of EN steel with 6 slots. 8 speed in either direction.
- Grounded parts finished on imported grinding machine.
- Major parts castings are of standard grade.
- Head stock is bored on imported boring machine.
- Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearings for smooth & accurate running.
Specifications:-
In : Drilling40mm
Cast : Face Mill100mm
Iron : End Mill25mm
:Tapping22mm
In Mild steel drilling35mm
Column Diameter114mm
Swing560mm
Working Surface725 x 224mm
Longitudinal Travel Manual340mm
Cross Travel305mm
Vertical Travel830mm
Quill Travel170mm
Spindle TaperMT - 4
Range Of Spindle Speed75 to 2070 RPM
No. Of Spindle Speed8
Range of Power Feed AUTO FEED
Distance Spindle To Base830mm
Overall Height With Guard1780mm
Main Electrical Motor1,5 HP
Shipping Case (I x W x H)1170 x 915 x 1570mm
Standard Accessories:-
- Motor Pulley
- Drift Key
Price of the Product
Characteristics of the Product
- Type Drilling cum Milling Machine
- Model SI-6DMU/A
- Brand Siddhapura Industries
- Origin India
Category of the Product
Company website
15
products -
Siddhapura Industries
Our recommended products and services
-
-
K DRILL: 2GSS Solid Caride Drill, Straight shank It is suitable for a wide range of workpiece materials such as cast steel, cast iron, non-ferrous metals and plastics by using high-grade tungsten carbide material.
-

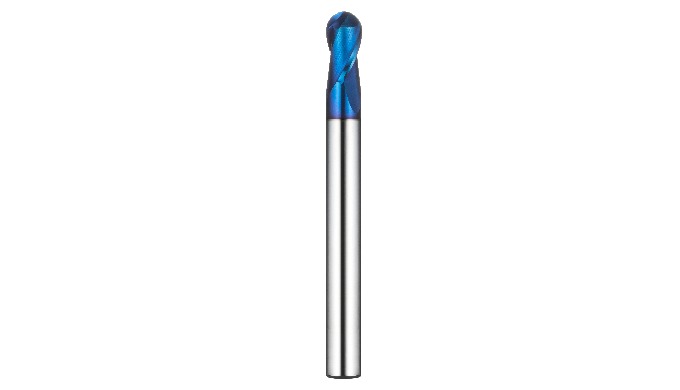

B- HARD : 2BCB-2Flutes Standard Ball End mills * Endmills for pre-hardened and hardened steel (HRC52~70) • Designed for high speed cutting of hardened steels over HRc52. • Maximize the wear-resistance due to TiSiN-S coating. To purchase a sample, please click on the link below. On-line Sample Mall
-
